VistaMAX™: New High-Performance Coating by Vistalux

Vistalux are excited to announce a new upgrade to our low-e coating developed in partnership with our manufacturing partner Taiwan Glass.

VistaMAX™ has light transmission of 90% on 4mm clear glass and achieves a U-value of 1.2 W/m²⋅K and G-value of 65% in a standard 4/16/4 unit.



        Product
        Treatment
        Light
        U-Value
        SHGC
        VLRout
        VLRin



        CLR-VistaMax#2-4+16Ar+CLR-4
        Heat Strengthened
        81
        1.2
        66
        13
        12


        CLR-4+16Ar+CLR-VistaMax#3-4
        Heat Strengthened
        80
        1.2
        64
        12
        13


        SCL-VistaMax#2-4+16Ar+SCL-4
        Heat Strengthened
        82
        1.2
        71
        13
        12


        SCL-4+16Ar+SCL-VistaMax#3-4
        Heat Strengthened
        82
        1.2
        69
        12
        13


        SCL-VistaMax-4
        Heat Strengthened
        91
        -
        -
        6
        4


        CLR-VistaMax-4
        Heat Strengthened
        90
        -
        -
        6
        4




Product	Treatment	Light	U-Value	SHGC	VLRout	VLRin
CLR-VistaMax#2-4+16Ar+CLR-4	Heat Strengthened	81	1.2	66	13	12
CLR-4+16Ar+CLR-VistaMax#3-4	Heat Strengthened	80	1.2	64	12	13
SCL-VistaMax#2-4+16Ar+SCL-4	Heat Strengthened	82	1.2	71	13	12
SCL-4+16Ar+SCL-VistaMax#3-4	Heat Strengthened	82	1.2	69	12	13
SCL-VistaMax-4	Heat Strengthened	91	-	-	6	4
CLR-VistaMax-4	Heat Strengthened	90	-	-	6	4

As with our previous coating PLE85A, VistaMAX™ can be used either annealed or toughened as a single-stock product allowing for processing flexibility. VistaMAX™ can be used both flat and curved with the same coating.

VistaMAX™ is available in all thicknesses from 4mm to 16mm on clear and low-iron glass in a range of sizes up to jumbo (3600 x 6000mm).

PLE85A will remain available to existing customers throughout Europe or for those seeking the advantage of insulation performance of 1.1 W/m²⋅K.

Our manufacturing facilities in Shanghai, China are producing over 20,000m² of high-performance low-emissivity coated glass each day. Most of this production is destined for export markets in South-East Asia, Australia and Europe.

All Vistalux coated products are also available as fully fabricated integrated glass units including any lamination, heat treatment, curved and over-sized requirements.

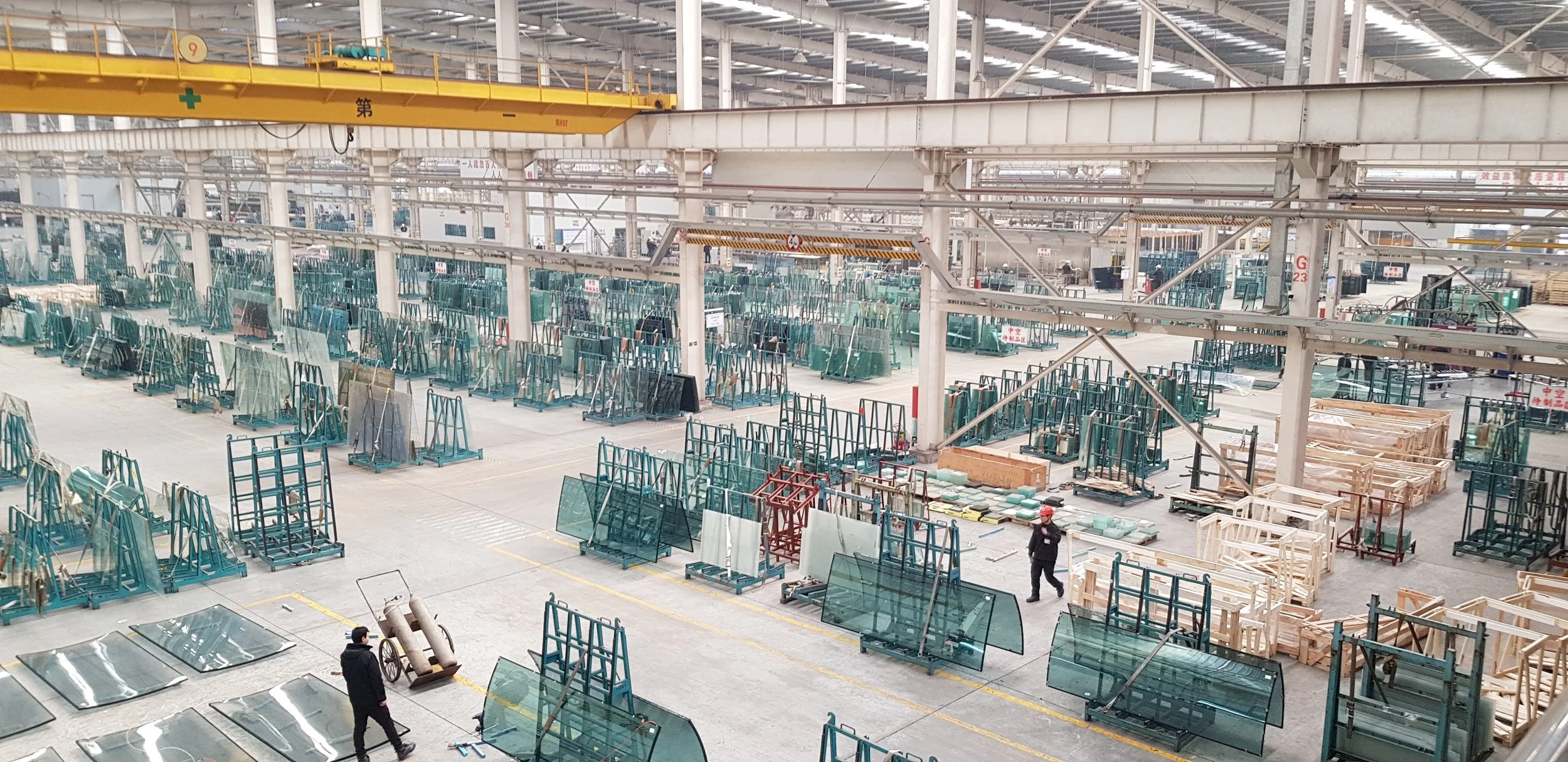

TTAR Manufacturing and architectural processing facility in Shanghai, China.

Our VistaMAX™ coating is now available across Europe. For pricing on VistaMAX™ and our extensive range of architectural glass and bonding products, please contact the Vistalux team via hello@vistalux.eu or use the form below.
